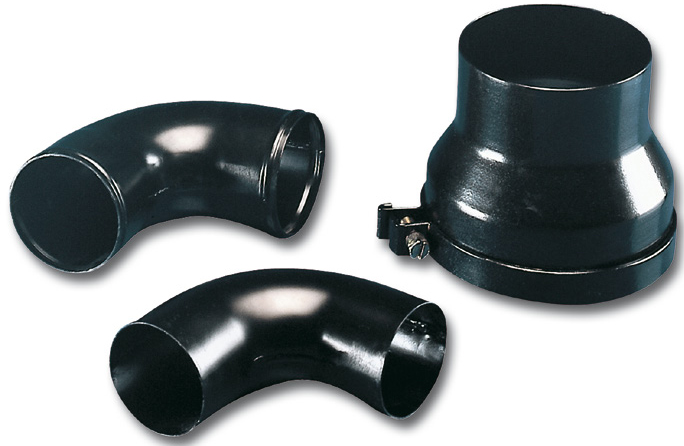

曼胡默爾空氣連接件金屬彎管

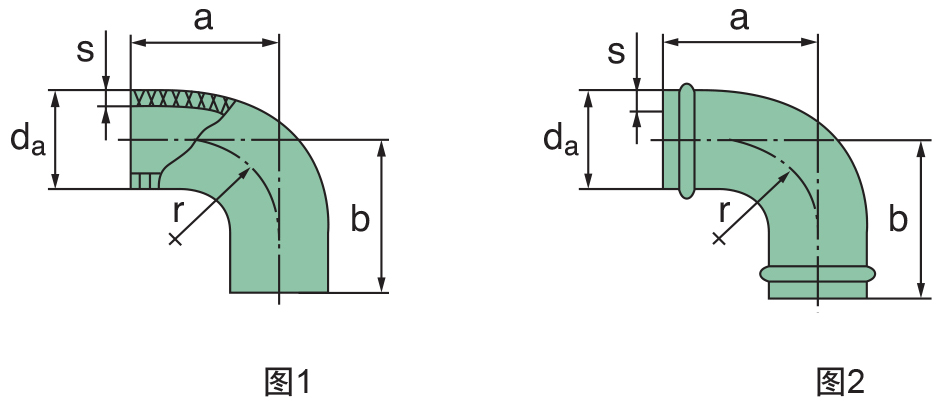

| 訂貨編號(hào) | 圖例 | 尺寸mm | ||||
| a | b | da | r | s | ||
| 3900025188 | 1 | 60 | 60 | 52 | 40 | 0.75 |
| 3103425442 | 1 | 95 | 95 | 62 | 60 | 0.75 |
| 3900025152 | 1 | 70 | 70 | 70 | 60 | 1.0 |
| 3900025207 | 2 | 100 | 100 | 70 | 60 | 1.0 |
| 3900025956 | 2 | 110 | 110 | 80 | 55 | 1.0 |
| 3900025148 | 1 | 61 | 61 | 82 | 55 | 1.0 |
| 3900025153 | 1 | 80 | 67 | 90 | 60 | 1.0 |
| 3900025273 | 1 | 80 | 80 | 100 | 65 | 1.0 |
| 3900025124 | 2 | 110 | 110 | 100 | 65 | 1.0 |
| 3900025146 | 1 | 90 | 90 | 110 | 85 | 1.0 |
| 3900025192 | 2 | 110 | 110 | 110 | 85 | 1.0 |
| 3900025198 | 2 | 125 | 125 | 110 | 85 | 1.0 |
| 3900025147 | 1 | 120 | 120 | 130 | 95 | 1.0 |
| 3900025224 | 2 | 140 | 140 | 130 | 95 | 1.0 |
| 3900025142 | 1 | 180 | 180 | 150 | 110 | 1.0 |
| 3900025333 | 2 | 180 | 180 | 150 | 110 | 1.0 |
