曼牌 濾清器 |
額定 流量 [l/min] |

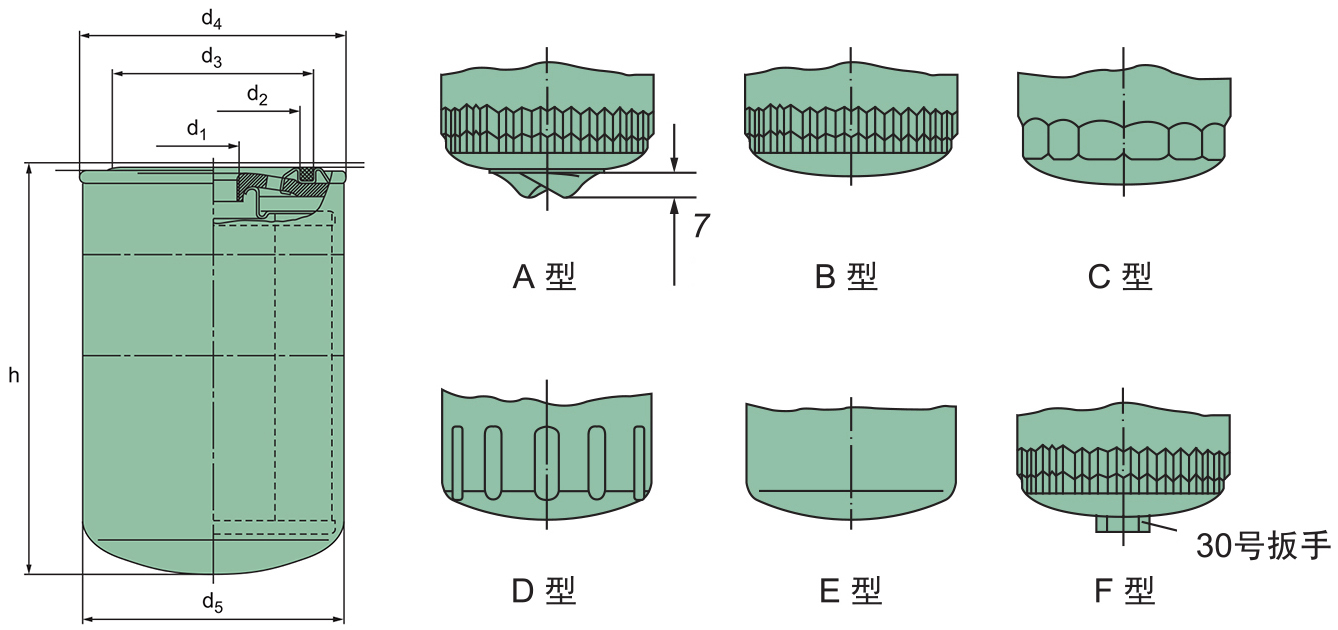

尺寸mm |
過濾效率 按照ISO16889 [μm(c)]* 50% 99% 分離效率 |
止回閥 [bar] |
旁通閥 [bar] |
容許 工作壓力 [bar] |
型號(hào) | |||||
d1 | d2 | d3 | d4 | d5 | h | |||||||
W712/65 | 20 |
3/4"- 16 UNF |
62 | 71 | 80 | 76 | 93 | 20 >50 | 0.12 | 2.5 | 14 | C |
W719/37 | 30 |
3/4"- 16 UNF |
62 | 71 | 80 | 76 | 123 | 20 >50 | 0.12 | 2.5 | 14 | C |
W920/51 | 30 |
3/4"- 16 UNF |
62 | 71 | 96 | 93 | 95 | 20 >50 | 0.12 | 2.5 | 14 | A |
W920/40 | 35 |
3/4"- 16 UNF |
62 | 71 | 96 | 93 | 95 | 14 38 | 0.12 | 1.2 | 14 | B |
W930/35 | 40 |
3/4"- 16 UNF |
62 | 71 | 96 | 93 | 114 | 20 >50 | 0.12 | 2.5 | 14 | A |
W940/55 | 55 |
3/4"- 16 UNF |
62 | 71 | 96 | 93 | 142 | 20 >50 | 0.12 | 2.5 | 14 | A |
W950/24 | 70 |
1"- 12 UNF |
62 | 71 | 96 | 93 | 170 | 14 38 | 0.12 | 1.6 | 14 | B |
W962/14 | 75 |
1"- 12 UNF |
62 | 71 | 96 | 93 | 210 | 14 38 | - | 2.5 | 14 | B |
W962/18 | 100 |
1"- 12UNF |
62 | 71 | 96 | 93 | 210 | 5 19 | 0.12 | 2.5 | 14 | B |
W1170 | 70 |
1"- 12 UNF |
93 | 104 | 110 | 108 | 227 | 14 38 | 0.12 | 1.2 | 14 | C |
W11102 | 100 |
1 1/8"- 16 UN |
93 | 104 | 110 | 108 | 260 | 20 >50 | 0.12 | 2.5 | 14 | C |
WD962/21 | 65 |
1"- 12 UNF |
62 | 71 | 96 | 93 | 212 | 4 10 | - | 2.5 | 25 | E |
WD13145/8 | 190 |
1 1/2"- 16 UN |
100 | 111 | 140 | 136 | 302 | 15 38 | - | 2.5 | 20 | E |
WD13145/10 | 190 |
1 1/2"- 16 UN |
100 | 111 | 140 | 136 | 302 | <3 7 | - | 2.5 | 20 | E |
WD13145/14 | 210 |
1 1/2"- 16 UN |
100 | 111 | 140 | 136 | 302 | 4 10 | - | 2.5 | 20 | E |
